Heavy Duty Exhaust Fan
Wood Wool
Honey Comb Wool
| Air Delivery (m3/hr) | 4100 |
|---|---|
| Cooling Area* (sq.ft) | 650 |
| Pump | Medium |
| Electricals | 230v/50hz |
| Wattage | 170 Watt |
| Max Current (Amp.) | 0.75 |
| Exhaust / Kit | Exhaust |
| Fan Diameter | 15" (375 mm) |
| Water Capacity (Ltr.) | 120 |
| Cooling Media | Wood Wool / Honey Comb |
| Product Dimention (mm) | |
| Length | 720 mm |
| Breadth | 755 mm |
| Height | 985 mm |
| Color | Grey & White |
Heavy Duty Exhaust Fan
Wood Wool
Honey Comb Wool
| Air Delivery (m3/hr) | 6200 |
|---|---|
| Cooling Area* (sq.ft) | 1050 |
| Motor RPM | 1400 |
| Pump | Medium |
| Electricals | 230v/50hz |
| Wattage | 360 Watt |
| Max Current (Amp.) | 1.6 |
| Exhaust / Kit | Exhaust |
| Fan Diameter | 18" (450 mm) |
| Water Capacity (Ltr.) | 120 |
| Cooling Media | Wood Wool / Honey Comb |
| Product Dimention (mm) | |
| Length | 720 mm |
| Breadth | 755 mm |
| Height | 985 mm |
| Color | Grey & White |
Heavy Duty Exhaust Fan
Wood Wool
Honey Comb Wool
| Air Delivery (m3/hr) | 6200 |
|---|---|
| Cooling Area* (sq.ft) | 1300 |
| Motor RPM | 1400 |
| Pump | Heavy |
| Electricals | 230v/50hz |
| Wattage | 360 Watt |
| Max Current (Amp.) | 1.6 |
| Exhaust / Kit | Exhaust |
| Fan Diameter | 18" (450 mm) |
| Water Capacity (Ltr.) | 190 |
| Cooling Media | Wood Wool / Honey Comb |
| Product Dimention (mm) | |
| Length | 860 mm |
| Breadth | 710 mm |
| Height | 1505 mm |
| Color | Grey & White |
Heavy Duty Exhaust Fan
Wood Wool
| Air Delivery (m3/hr) | 6200 |
|---|---|
| Cooling Area* (sq.ft) | 1100 |
| Motor RPM | 1400 |
| Pump | Medium |
| Electricals | 230v/50hz |
| Wattage | 360 Watt |
| Max Current (Amp.) | 1.6 |
| Exhaust / Kit | Exhaust |
| Fan Diameter | 15" (375 mm) |
| Water Capacity (Ltr.) | 120 |
| Cooling Media | Wood Wool / Honey Comb |
| Product Dimention (mm) | |
| Length | 815 mm |
| Breadth | 710 mm |
| Height | 1220 mm |
| Color | Grey & White |
Heavy Duty Exhaust Fan
Wood Wool
| Air Delivery (m3/hr) | 6200 |
|---|---|
| Cooling Area* (sq.ft) | 1100 |
| Motor RPM | 1400 |
| Pump | Medium |
| Electricals | 230v/50hz |
| Wattage | 360 Watt |
| Max Current (Amp.) | 1.6 |
| Exhaust / Kit | Exhaust |
| Fan Diameter | 18" (450 mm) |
| Water Capacity (Ltr.) | 200 |
| Cooling Media | Wood Wool / Honey Comb |
| Product Dimention (mm) | |
| Length | 815 mm |
| Breadth | 710 mm |
| Height | 1220 mm |
| Color | Grey & White |

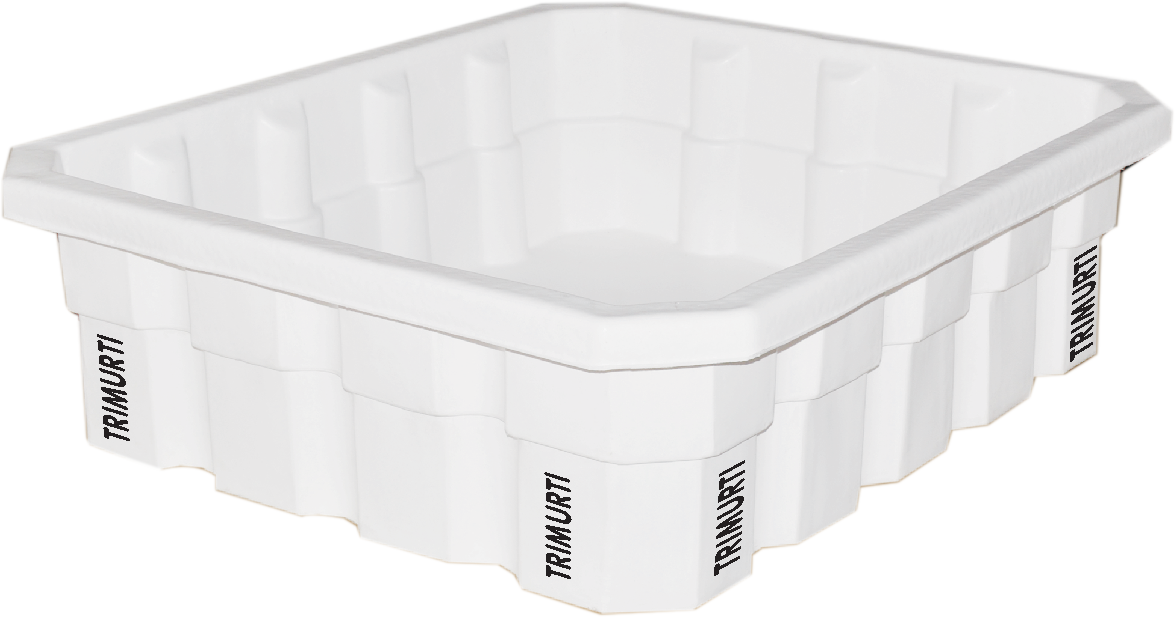

Available Size : - 200 Ltr & 250 Ltr
