TRIMURTI PVC PIPES are manufactured by an advanced continuous manufacturing technique using a special formulation of raw materials namely Poly Vinyl Chloride (PVC) resin under the BIS specifications IS: 4985:2000. The PVC Pipes have extensive range of applications in the field of Agricultural, Industrial, Domestic and Commercial purpose.

RANGE

Class - I to Class VI

Pressure Rating - 2.5 Kgf/Cm2 to 12.5 Kgf/Cm2

Size (OD) - 32 mm to 250 mm

Standard Length - 6 meter

Colour - Ivory & Grey

APPLICATION

Portable water supply.

Sewage / drainage system installations.

Lift irrigation schemes.

Rain water drainage.

Cable ducting for power & telecommunications.

For Riser Main Handpump Pipe.

SALIENT FEATURES

Low cost in comparison to G.I. & C.I. Pipes.

Easy in installation.

Minimum frictional losses thus saving in pumping cost.

25% higher discharge rate than G.I. Pipes.

No contamination due to incrustation or corrosion.

Leak proof joints.

Fire resistant, non conductor of electricity & low thermal conductivity.

PRODUCTS SPECIFICATION

Dimensions as per IS 4985

S. NO.	NOMINAL OUTSIDE DIAMETER	WORKING PRESSURE IN KGF/CM2 & PRICE PER PIPE (6.00 METER LENGTH)
		2.5 KGF/CM2		4.0 KGF/CM2		6.0 KGF/CM2		8.0 KGF/CM2		10.0 KGF/CM2
		WALL THICKNESS		WALL THICKNESS		WALL THICKNESS		WALL THICKNESS		WALL THICKNESS
		MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX	MIN	MAX
1	1					1.40	1.80			2.20	2.70
2	50					1.70	2.10			2.80	3.30
3	63			1.50	1.90	2.20	2.70	2.80	3.30	3.50	4.10
4	75			1.80	2.20	2.60	3.10	3.40	4.00	4.20	4.90
5	90	1.30	1.70	2.10	2.60	3.10	3.70	4.00	4.60	5.00	5.70
6	110	1.50	2.00	2.50	3.00	3.70	4.30	4.90	5.60	6.10	7.10
7	125	1.80	2.20	2.90	3.40	4.30	5.00	5.60	6.40	6.90	8.00
8	140	2.0	2.40	3.20	3.80	4.80	5.50	6.30	7.30	7.70	8.90
9	160	2.30	2.80	3.70	4.30	5.40	6.20	7.20	8.30	8.80	10.20
10	180	2.60	3.10	4.20	4.90	6.10	7.10	8.00	9.20	9.90	11.40
11	200	2.90	3.40	4.60	5.30	6.80	7.90	8.90	10.30	11.00	12.70
12	225	3.30	3.90	5.20	6.00	7.60	8.80	10.00	11.50	12.40	14.30
13	250	3.60	4.20	5.70	6.50	8.50	9.80	11.20	12.90	13.80	15.90

TRIMURTI COLUMN PIPES are designed and developed by us for submersible pumps and are also available as per ASTM D-1785 standard. The pipes are manufactured in the range of 1’’ to 4’’ diameters with the wall thicknesses as designed by us and also as available according to ASTM D-1785 (SCH-80 & SCH-120). The Pipes are available in white Colour and supplied in nominal length of 3.0 meters.

RANGE

Size: 1” to 4”

Length: 3 mtrs

Color: White

APPLICATION

Bore well/tube well system.

Potable water supply system.

Agricultural and irrigation scheme.

Urban and rural areas drinking water supply scheme.

SALIENT FEATURES

Specially designed thread profile for maximum load capacity and easy assembly.

Efficient pumping due to low friction loss resulting in energy saving.

Fast lowering and pulling of pumps.

Low installation cost.

Light in weight offers easy handling and transportation in comparison to GI pipes.

Less wastage of electricity & a good flow of water.

PRODUCTS SPECIFICATION

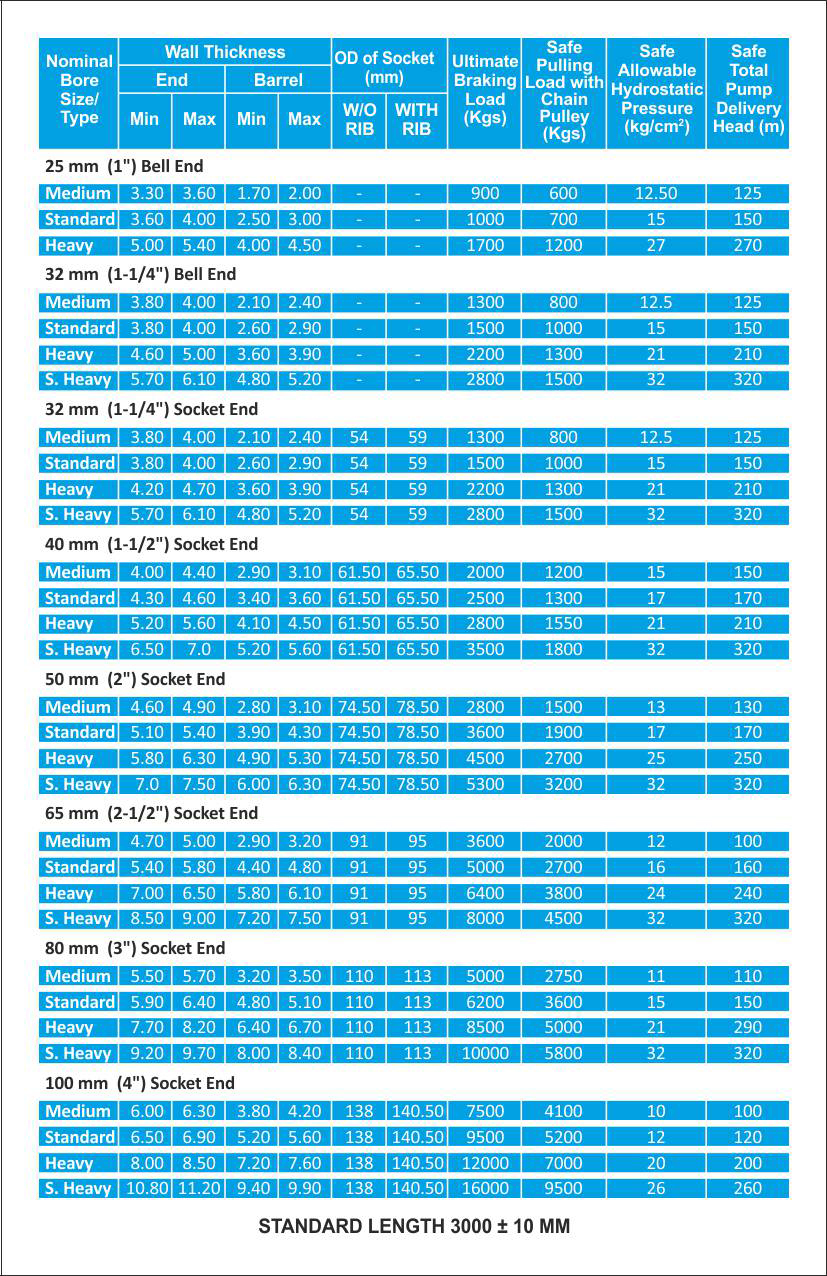

DIMENSION & SPECIFICATION

The company is dedicatedly engaged in offering an extensive array of long lasting Plain TRIMURTI CASING PIPES and TRIMURTI CASING SCREEN PIPES which are specially designed to ensure clean, clear water from bore well, whether shallow or deep. Our light weight PVC Casing Pipes are fabricated in high grade polyethylene fiber as per the leading IS and DIN standards.

TYPES

Trimurti casing pipes are made as per IS: 12818 and DIN 4925 and are classified as:

Plain Pipes

These can be used as extension pipes to screen pipe. They are of two types: C. S. Pipe: For shallow-depth (up to 80 m) red colour code. C. M. Pipe: For medium-depth (up to 250 m) yellow colour code.

Screen Pipes

These pipes may be plain or ribbed. They have transverse slots and are mainly used in bore wells, from the water-table Level onwards.

Ribbed Screen Pipes

These pipes have longitudinal ribs and transverse slots. The ribs keep granulated soil away from the slots, and increase the permeability rating to more than double when compared to plain screen pipes.

RANGE

Size: 80mm to 200 mm (Nominal Diameter).

Length: 3 mtrs.

Color: Ivory and Blue.

APPLICATION

Ducting for Power and Communications cable.

Surface water drainage.

Industrial Mining.

Irrigations System and Sprinkler System.

Chemical Distribution.

SALIENT FEATURES

Strong & durable.

Easy Installation.

Extract clean water from bore-wells.

No Surface corrosion.

Long Life.

Made as per IS12818 & DIN4926 specifications.

Trapezoidal threads make joints easy to handle and install.

Non-Corrosive.

Power Saver.

Resists Chemicals.

No Bacterial Growth.

Light in Weight.

Non-Toxic and Taste-Free Water.

PRODUCTS SPECIFICATION

1. DIMENSIONS OF "CS' CASING P.IPES- for well depth up to 80 meters

Nominal Diameter	Mean Outside Diameter of Pipe		Outside Diameter of Pipe at any Point		Wall Thickness
DN	Min	Max	Min	Max	Min	Max
150	165.00	165.40	164.80	174.00	5.70	6.50
175	200.00	200.50	199.80	211.00	7.00	7.80
200	225.00	250.50	224.80	238.00	7.60	8.80

2. DIMENSIONS OF "CM' CASING PIPES- for well depth between 80-250 meters

Nominal Diameter	Mean Outside Diameter of Pipe		Outside Diameter of Pipe at any Point		Wall Thickness
DN	Min	Max	Min	Max	Min	Max
40	48.00	48.20	48.00	48.30	3.50	4.00
50	60.00	60.20	59.90	60.30	4.00	4.60
80	88.00	88.30	88.00	88.40	4.00	4.60
100	113.00	113.30	112.90	113.40	5.00	5.70
115	125.00	125.30	124.00	126.40	5.00	5.70
125	140.00	140.40	139.90	140.50	6.50	7.30
150	165.00	165.40	164.80	165.60	7.50	8.50
175	200.00	200.50	199.60	200.60	8.00	9.80
200	225.00	225.50	224.80	225.80	10.00	11.20

3. DIMENSIONS OF "RMS' PIPES

Nominal Diameter	Mean Outside Diameter of Pipe		Outside Diameter of Pipe at any Point		Wall Thickness
DN	Min	Max	Min	Max	Min	Max
40	52.00	52.20	51.90	52.30	3.50	4.00
50	64.00	64.20	63.90	64.30	4.00	4.60
80	92.00	92.30	91.80	92.40	4.00	4.60
100	110.00	110.30	116.80	117.40	5.00	5.70
115	129.00	129.30	128.80	129.40	5.00	5.70
125	144.00	144.40	143.00	144.50	6.50	7.30
150	169.00	169.40	168.60	169.60	7.50	8.50
175	204.00	200.50	203.60	204.60	8.80	9.80
200	229.00	229.50	228.50	229.80	10.00	11.20

TRIMURTI UPVC PLUMBING PIPES are manufactured as per ASTM(American society for testing and materials) D-1785. Proven and renowned for their flexibility, impact strength and durability, the exclusive range of Plumbing Pipes is highly resistant to corrosion and abrasion. Capable of withstanding momentary high pressures, our Flexible Plumbing Pipes render excellent flow properties.

RANGE

Size: 1/2" to 2”.

Schedule: 40, 80 and 120.

Length: 3mtrs and 6 mtrs.

APPLICATION

Potable water supply system used in complexes, flats, offices, hotels, hospitals, bus stands, railway stations and airports.

Bathroom fittings, kitchen sinks, wash basins and Laboratories.

Water distribution in rural areas.

Industrial applications.

SALIENT FEATURES

UV-stabilized (No sunrays & weather effect).

Suitable for supply of clean & hygienic drinking water.

Economical/low operating & maintenance cost.

Light weight facilitates easy & fast installation.

No root penetration and 100% leak proof joints.

Excellent corrosion chemical resistance.

Mirror smooth inside surface ensures high flow rates.

No algae formation.

Non conductor of electricity & low thermal conductivity.

PRODUCTS SPECIFICATION

Dimensions of Plumbing Pipes to ASTM D 1785 and Threaded to match G.I. Pipes as per IS : 1239 (Part-1) or IS:554

		Schedule-40 (Light Duty)		Schedule-80 (Medium Duty)		Schedule-120 (Heavy Duty)
Inside Dia in Inch	Outside Dia in mm	Wall Thick in mm	Pressure Rating in Bar	Wall Thick in mm	Pressure Rating in Bar	Wall Thick in mm	Pressure Rating in Bar
1/2"	21.2	2.8	20.5	3.7	29	4.3	35
3/4"	26.6	2.9	16.5	3.9	23	4.3	27
1"	33.3	3.4	15.5	4.5	22	5.1	22
1.1/4"	42.0	3.6	12.5	4.9	18	5.5	21
1.1/2"	48.1	3.7	11.5	5.1	16	5.7	19
2"	60.2	3.9	9.5	5.5	14	6.4	17

TRIMURTI RISER MAIN PIPES are made of special uPVC compound for using Handpump and submersible pump installations. Our main Riser Pipes are of the highest quality to provide the corrosion resistance and life expectancy needed for long-term monitoring and environmental remediation.

SALIENT FEATURES

Vastly popular & Well accepted all over Western and Eastern Africa.

Considerably cheaper than Stainless Steel Riser Pipe.

Being of very light weight, can be easily mounted / dismounted.

More durable than Galvanized Iron (GI) Riser Pipe.

More hygenic being less corrosive.

Weather-resistant.

Lower friction loss.

Chemical resistant.

Cost effective.

Power Saver.

No Electrolytic Deposition.
